INDUSTRIAL CHILLER SERIES

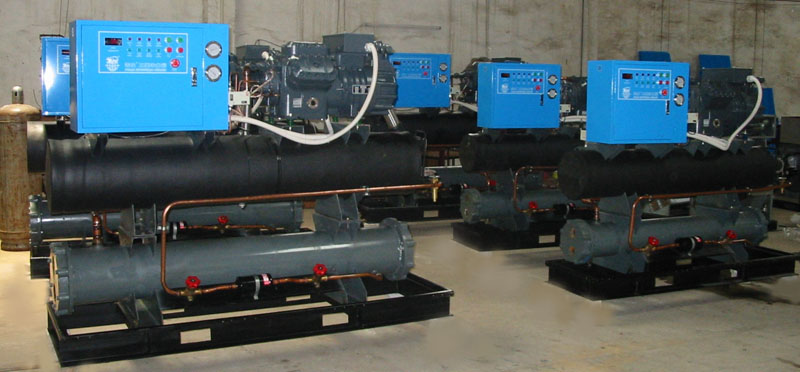

water cooled screw type water chiller

Model		WP-30S	WP-40S	WP-50S	WP-60S	WP-80S	WP-100S
refrigerated capacity	kcal/h	75000	108860	136200	162700	221000	283500
	KW	87.2	126.6	158.3	189.2	256.9	329.6
	USRT	24.8	36	45	53.8	73.1	93.8
can control temp °C		+ 3°C - + 40°C
power source		3Ø 380V 50HZ(or select 60HZ)
compressor power kw		22.5	30	37.5	45	60	75
refrigerant		R-22（or select R407C/R134a/R404A/R410a)
in/out pipe inch		2-1/2	3	3	3(4)	4	4
condenser/evaporator		shell and tube
cooling water L/min		350	450	550	698	827	1148
standard ice water L/min		300	400	500	571	747	933
protection device		time delay,the protection of water shortage,the control and display of high and low pressure,the control and display of temperature,the protectionof over load,the oil heating,the errors display and so on.
outside dimensions	H mm	1450	1480	1450	1650	1750	1750
	W mm	1100	1100	1250	2650	2650	3000
	D mm	1580	2050	2100	950	1100	1100

Model		WP-120S	WP-160S	WP-180S	WP-200S	WP-240S	WP-280S
refrigerated capacity	kcal/h	331500	453200	505400	588500	663100	801500
	KW	385.5	527	587.6	658.7	771	932
	USRT	109.6	150	167.1	187.3	219.3	265
can control temp °C		+ 3°C - + 40°C
power source		3Ø 380V 50HZ（or select 60HZ）
compressor power kw		90	120	135	150	180	210
refrigerant		R-22（or select R407C/R134a/R404A/R410a)
condenser/evaporator		shell and tube
in/out pipe inch		4	5	5	6	6	6
cooling waterL/min		1428	1838	2107	2527	2859	3250
standard ice water L/min		1162	1496	1714	1934	2326	2750
protection device		time delay,the protection of water shortage,the control and display of high and low pressure,the control and display of temperature,the protectionof over load,the oil heating,the errors display and so on.
outside dimensions	H mm	1750	2000	2000	2200	2200	2200
	W mm	3000	3500	3500	3800	3800	3800
	D mm	1100	1350	1350	1500	1500	1850

Model		WP-300S	WP-320S	WP-360S	WP-400S	WP-420S	WP-480S
refrigerated capacity	kcal/h	848300	904850	1017900	1115700	1172600	1327300
	KW	986	1052	1183	1297	1363	1543
	USRT	280	299	336	368	387	438
can control temp °C		+ 3°C - + 40°C
power source		3Ø 380V 50HZ（or select 60HZ）
compressor power kw		227	242	271	295	310	348
refrigerant		R-22（or select R407C/R134a/R404A/R410a)
condenser/evaporator		shell and tube
in/out pipe inch		6	6	8	8	8	8
cooling water L/min		3550	3760	4330	4500	4810	5532
standard ice waterL/min		2850	3010	3325	3680	3895	4390
protection device		time delay,the protection of water shortage,the control and display of high and low pressure,the control and display of temperature,the protectionof over load,the oil heating,the errors display and so on.
outside dimensions	H mm	2200	2200	2200	2200	2200	2200
	W mm	4000	4000	4500	4500	4500	4500
	D mm	1800	1800	1800	2000	2000	2000

The cooling based on the following condtions：

1. ice water in/out temp：12/7℃

2. cooling water in/out temp：30/35℃

air cooled screw type water chiller

Model		RP-30S	RP-40S	RP-50S	RP-60S	RP-80S
refrigerated capacity	kcal/h	71200	97800	129400	154500	209900
	KW	82.7	113.7	150.4	179.6	244.1
	USRT	23.5	32.3	42.8	51.1	69.4
can control temp °C		+ 3°C - + 40°C
power source		3Ø 380V 50HZ(can select 60HZ)
compressor power kw		22.2	30	37.5	45	60
refrigerant		R-22（can select R407C/R134a/R404A)
in/out pipe inch		2-1/2	3	3	3	4
condenser	type	cross-finned tubes
condenser	air m3/min	560	720	900	1160	1460
evaporator	type	shell pipe(can select water tank evaporator)
evaporator	standard ice water L/min	300	400	500	571	747
ice water pump kw		2.2	3.75	3.75	5.6	7.5
protection device		time delay,the protection of water shortage,the control and display of high and low pressure,the control and display of temperature,the protectionof over load,the oil heating,the errors display and so on.
outside dimensions	H mm	1880	1880	1905	2350	2500
	W mm	1360	1700	1732	2000	2200
	D mm	2100	2100	2195	3000	4350

Model		RP-100S	RP-120S	RP-160S	RP-180S	RP-200S	RP-240S
refrigerated capacigy	kcal/h	269300	314900	430500	480100	538100	629900
	KW	313.1	366.2	500.6	558.3	625.7	732.4
	USRT	89.1	104.1	142.4	158.8	177.9	208.3
can control temp °C		3°C - + 40°C
power source		3Ø 380V 50HZ(can select 60HZ)
compressor power kw		75	90	120	135	150	180
refrigerant		R-22（can select R407C/R134A/R404A)
in/out pipe inch		4	4	5	5	6	6
condenser	type	cross-finned tubes
condenser	air m3/min	1920	2385	2900	3360	3830	4780
evaporator	type	shell pipe
evaporator	standard ice water L/min	933	1162	1496	1714	1934	2326
protection device		time delay,the protection of water shortage,the control and display of high and low pressure,the control and display of temperature,the protectionof over load,the oil heating,the errors display and so on.
outside dimensions	H mm	2500	2500	2800	2800	2800	3000
	W mm	2200	2200	2500	2500	2500	2500
	D mm	4350	4500	6000	6000	6000	7500

The cooling based on the following condtions：

1. ice water in/out temp：12/7℃

2. ambient temp：30℃

- other specification according to demand.

- reserves the right to modify the details shown here in without prior notification.
