FEATURES AND BENEFITS |
|
| |
 |
To control various temperature (-30
centigrade- +40 centigrade) accurately
during industrial production or A/C. |
|
|
|
The series chiller have manufacturing
experience for about twenty years,
Install an usage simple, support in
brief. |
|
|
|
Components are from world known
manufacturers to make use stable
performance and exactitude,
stabilization, long service life. |
|
|
|
According the requirement, in the same
unit, there are more than two
independent refrigeration loops. |
|
|
|
Perfect Protection Device (Time Delay,
Water Scarcity Protection, the water
flow protection, the control and display
of high and low pressure, Temperature
Control and Display, phase protection,
Overload Protection, Frostbite
Prevention, Automatic complement water.) |
|
|
|
Evaporator: can choose stainless steel
tank type or shell pipe type or shell
and tube type. |
|
|
|
Water-cooled condenser: choose shell
pipe or shell and tube.
Shell and tube type: made by stainless
steel and high effect screw thread tube
pipe, Will not become rusty forever.
Shell pipe type: adopts double heat
exchanging pipe whose efficiency is
higher 15% to 30% than other types. |
|
|
|
Air-cooled condenser: adopt special
heating panels, Bear corrosion, which
have a long using life. The effect is
constant from beginning to end. |
|
|
|
Refrigerant: R-22 (can choose
R407C/R134a/R410a/R404a) |
|
|
|
According the demand of the consumer, it
can supply nonstandard unit. |
|
|
| |
|
|
| |
|
|
| |
water
cooled industrial water chiller |
|
| |
-
Be
applicable to cooling requirement of equipment
or process of each industry. and provided
frozen water for air condition system.
-
temp
control range：3℃-40℃.
-
stainless steel water tank.
-
electric power：2HP-320HP (1.5Kw-240Kw)
-
cooling capacity：4800Kcal/h - 917500 Kcal/h
(5.6Kw -1066.8 Kw)
19000Btu - 3854900 Btu
(1.6 RT – 302.5 RT)
-
ice
water flow：20L/min
- 3010 L/min（1.2m3/h - 180 m3/h）
 |
 |
|
| |
|
|
| |
air
cooled industrial water chiller |
|
| |
-
Be
applicable to cooling requirement of equipment
or process of each industry. and provided
frozen water for air condition system。
-
temp
control range：3℃-40℃
-
electric power：1/2HP-240HP (0.37Kw-180Kw)
-
cooling capacity:1200Kcal/h - 629900 Kcal/h
(1.4Kw - 732 Kw)
4760Btu - 2499400 Btu
(0.4 RT - 208 RT)
-
ice
water flow:20L/min - 2326 L/min(1.2m3/h - 140
m3/h
|
 |
|
| |
|
|
| |
low
temperature industrial chiller |
|
| |
-
Be
applicable to the production craft that the low
temperature cooling.
-
semi-hermetic or hermetic low temperature
compressor for occident。
-
temp
control range：-40℃-40℃。
-
electric power：20HP-320HP (15Kw-240Kw)
-
cooling capacity：5500Kcal/h - 71380 Kcal/h
(6.4Kw - 83 Kw)
21800Btu -283000 Btu (1.5 RT
- 25 RT)
-
There are air-cooled type and water-cooled type
-
Can
order smaller or larger type.
|
 |
|
| |
|
|
| |
industrial
cooling & heating water unit |
|
| |
-
During industrial production, for technology and
season demand.
-
require cooling or heating at different times.
-
temp
control range：3℃-80℃
-
cooling capacity：1400 - 38000 Kcal/h (16 - 45
Kw)
-
heating capacity：12900 - 25800 Kcal/h (15 -30
Kw)
-
water flow：50L/min - 150 L/min
-
There are air-cooled type and water-cooled type
-
Can
order smaller or larger type.
|
 |
|
| |
|
|
| |

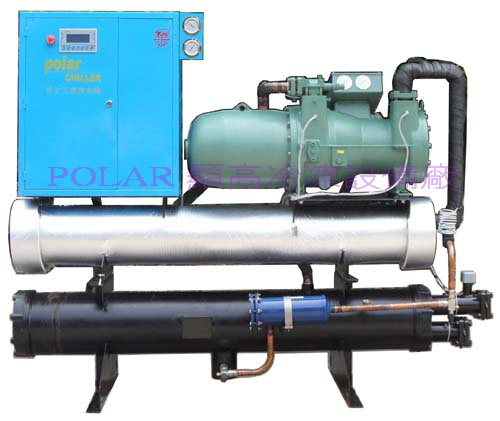

screw type water chiller |
|
| |
-
select screw type compressor,be applicable to
cooling requirement of equipment or process of
each industry. and provided frozen water for
air condition system.can select water cooled or
air cooled.
-
temp
control range：3℃-40℃.
-
electric power：30HP-480HP
(22.5Kw-348Kw)
-
cooling capacity：75000Kcal/h
- 1327300 Kcal/h
(87.2Kw -1543 Kw)
297600Btu - 5266700 Btu
(24.8 RT – 438 RT)
-
ice
water flow：300L/min
- 4390 L/min（18m3/h - 260 m3/h）
|
 |
|
| |
|
|
| |
pure
water cooling unit |
|
| |
-
suitable for equipment normal temperature
cooling.
-
Cooling
down mold tools or equipment while keeping
uninterrupted flow of clean water with low energy
consumption. Options: water-cooled or air cooled.
|
 |
|
| |
|
|
