INDUSTRIAL DEHUMIDIFIER SERIES

conventional heating-up dehumidifier

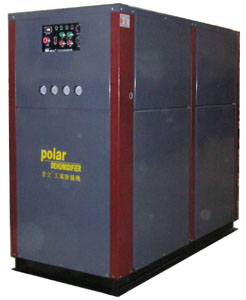

RC-packaged type

model		RC-560	RC-750	RC-1150	RC-1500	RC-2200	RC-3750
capaciyt L/h		2	3	4	6	8	13
can use temp		5°C - 40°C
power source		1Ø 220V 50HZ（can select 60HZ）				220/380V	380V
refrigerant		R-22(can selectR407C/R134a/R404a/R410a)
humidity control		30%RH-90%RH
air flow m3/h		500-750	750-900	1000-1200	1300-1500	1700-2000	2500-3000
power Kw		0.73	0.91	1.41	1.72	2.75	4.8
protection		time delay,the control of high and low pressure,the control of humidify,the protectionof over load,the errors display and so on.
drain pipe inch		3/8					1/2
outside dim	H mm	760	800	940	940	1150	1380
	W mm	530	530	650	1050	1050	1130
	D mm	360	360	420	320	340	380

model		RC-6000	RC-7500	RC-11500	RC-15000	RC-22000	RC-30000
capacity L/h		20	25	40	50	75	100
can use temp		5°C - 40°C
power source		3Ø 380V 50HZ （can select 60HZ）
refrigerant		R-22(can selectR407C/R134a/R404a/R410a)
humidity control		30%RH-90%RH
air flow m3/h		4000-4500	5000-6000	9000	11000	16000	22500
power Kw		7.50	9.60	14.00	19.00	28.50	39.00
protection		time delay,the control of high and low pressure,the control of humidify,the protectionof over load,the errors display and so on.
drain pipe inch		3/4		1
outside dim	H mm	1760	1795	1950	1950	2000	2000
	W mm	1260	1405	1750	1750	2000	2300
	D mm	550	550	600	600	850	1100

RCA-wall mounted type

model		RCA-560	RCA-750	RCA-1150	RCA-1500	RCA-2200
capaciyt L/h		2	3	4	6	8
can use temp		5°C - 40°C
power source		1Ø 220V 50HZ（can select 60HZ）				220/380V
refrigerant		R-22(can selectR407C/R134a/R404a/R410a)
humidity control		30%RH-90%RH
air flow m3/h		500-750	750-900	1000-1200	1300-1500	1700-2000
power Kw		0.73	0.91	1.41	1.72	2.75
protection		time delay,the control of high and low pressure,the control of humidify,the protectionof over load,the errors display and so on.
drain pipe inch		3/8
outside dim	H mm	580	640	645	690	820
	W mm	710	710	940	1010	1080
	D mm	280	345	357	370	415

- RC:packaged;RCA:wall mounted type
- ecapability of dehumidifying under the condition that the suction air’s temperature is 30℃ and the relative humidity is 80%.
- The company keeps the right of revising and not informing customers.
