POLAR PRODUCTS LIST

Industrial chillers series

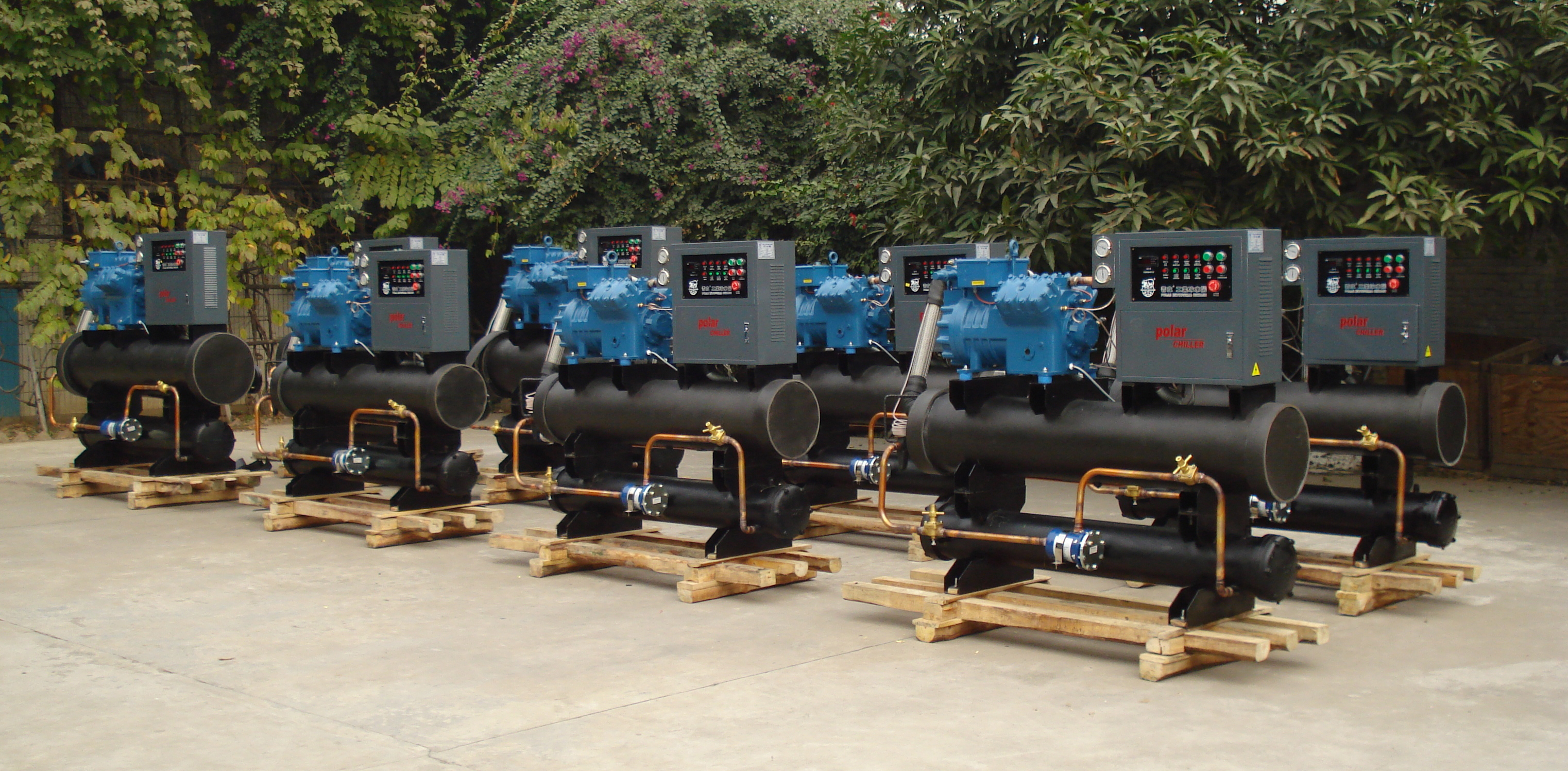

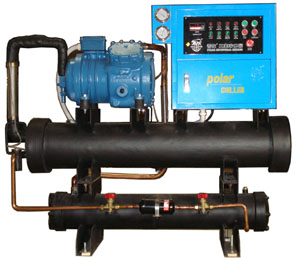

water cooled industrial water chiller

product features (click to reference)

technical data

model		WP-03	WP-04	WP-05	WP-06	WP-08	WP-10	WP-12	WP-15
refrigerated capacity	kcal/h	5200	7900	11000	14000	22000	28500	32500	38000
	KW	6	9.2	12.8	16.3	26.5	33.1	37.8	44.2
	USRT	1.7	2.6	3.6	4.6	7.5	9.4	10.7	12.6
can control temp °C		+ 3°C - + 40°C
power source		220V		3Ø 380V 50HZ(can select 60HZ)
compressor power kw		1.5	2.25	3	3.75	6	7.5	9	11.25
refrigerant		R-22（can select R407C/R134a/R404A/R410A)
in/out pipe inch		1	1	1	1	1-1/4	1-1/2	1-1/2	2
condenser		shell and tube(can select shell pipe)
cooling water L/min		40	48	55	70	100	118	135	170
water tank evaporator volume L		34	37	37	56	96	102	102	167
water tank evaporator volume L		（can select shell pipe evaporator）
standard ice water L/min		20	30	40	50	80	100	120	150
ice water pump kw		0.37	0.37	0.37	0.37	0.37	0.75	0.75	1.5
protection device		time delay,the protection of water shortage,the control and display of high and low pressure,the control and display of temperature,the protectionof over load,the oil heating,the errors display and so on.
outside dimensions	H mm	820	955	890	970	1230	1235	1270	1305
	W mm	435	490	530	530	570	570	650	645
	D mm	795	810	810	880	1210	1200	1380	1505

model		WP-20	WP-25	WP-30	WP-40	WP-50	WP-60	WP-80	WP-100
refrigerated capacity	kcal/h	55000	65600	75000	103000	136200	162700	221000	283500
	KW	64	76.3	87.2	119.8	158.3	189.2	256.9	329.6
	USRT	18.2	21.7	24.8	34.1	45	53.8	73.1	93.8
can control temp °C		+ 3°C - + 40°C
power source		3Ø 380V 50HZ(can select 60HZ)
compressor power kw		15	18.75	22.5	30	37.5	45	60	75
refrigerant		R-22（can select R407C/R134a/R404A/R410A)
in/out pipe inch		2	2-1/2	2-1/2	3	3	3(4)	4	4
condenser		shell and tube(can select shell pipe)				shell pipe
cooling water L/min		250	300	350	450	550	698	827	1148
water tank evaporator volume L		240	240	470	600	600	shell pipe （can select water tank evaporator evaporator）
water tank evaporator volume L		（can select shell pipe evaporator）					shell pipe （can select water tank evaporator evaporator）
standard ice water L/min		200	250	300	400	500	571	747	933
ice water pump kw		1.5	2.2	2.2	3.75	3.75	5.6	7.5	7.5
protection device		time delay,the protection of water shortage,the control and display of high and low pressure,the control and display of temperature,the protectionof over load,the oil heating,the errors display and so on.
outside dimensions	H mm	1425	1520	1450	1480	1450	1650	1750	1750
	W mm	955	1060	1100	1100	1250	2650	2650	3000
	D mm	1255	1200	1580	2050	2100	950	1100	1100

model		WP-120	WP-160	WP-180	WP-200	WP-240	WP-280	WP-320
refrigerated capacity	kcal/h	331500	453200	505400	588500	663100	801500	917500
	KW	385.5	527	587.6	658.7	771	932	1066.8
	USRT	109.6	150	167.1	187.3	219.3	265	302.5
can control temp °C		3°C - + 40°C
power source		3Ø 380V 50/60HZ
compressor power kw		90	120	135	150	180	210	240
refrigerant		R-22（can select R407C/R134a/R404A/R410A)
condenser/evaporator		shell pipe
in/out pipe inch		4	5	5	6	6	6	6
cooling water L/min		1428	1838	2107	2527	2859	3250	3821
standard ice water L/min		1162	1496	1714	1934	2326	2750	3010
protection device		time delay,the protection of water shortage,the control and display of high and low pressure,the control and display of temperature,the protectionof over load,the oil heating,the errors display and so on.
outside dimensions	H mm	1750	2000	2000	2250	2250	2500	2500
	W mm	3000	3500	3500	4000	4000	4500	4500
	D mm	1100	1350	1350	1500	1500	1850	1850

the cooling based on the following condtions：

1. ice water in/out temp：12/7℃

2. cooling water in/out temp：30/35℃

- other specification according to demand.

- reserves the right to modify the details shown here in without prior notification.
